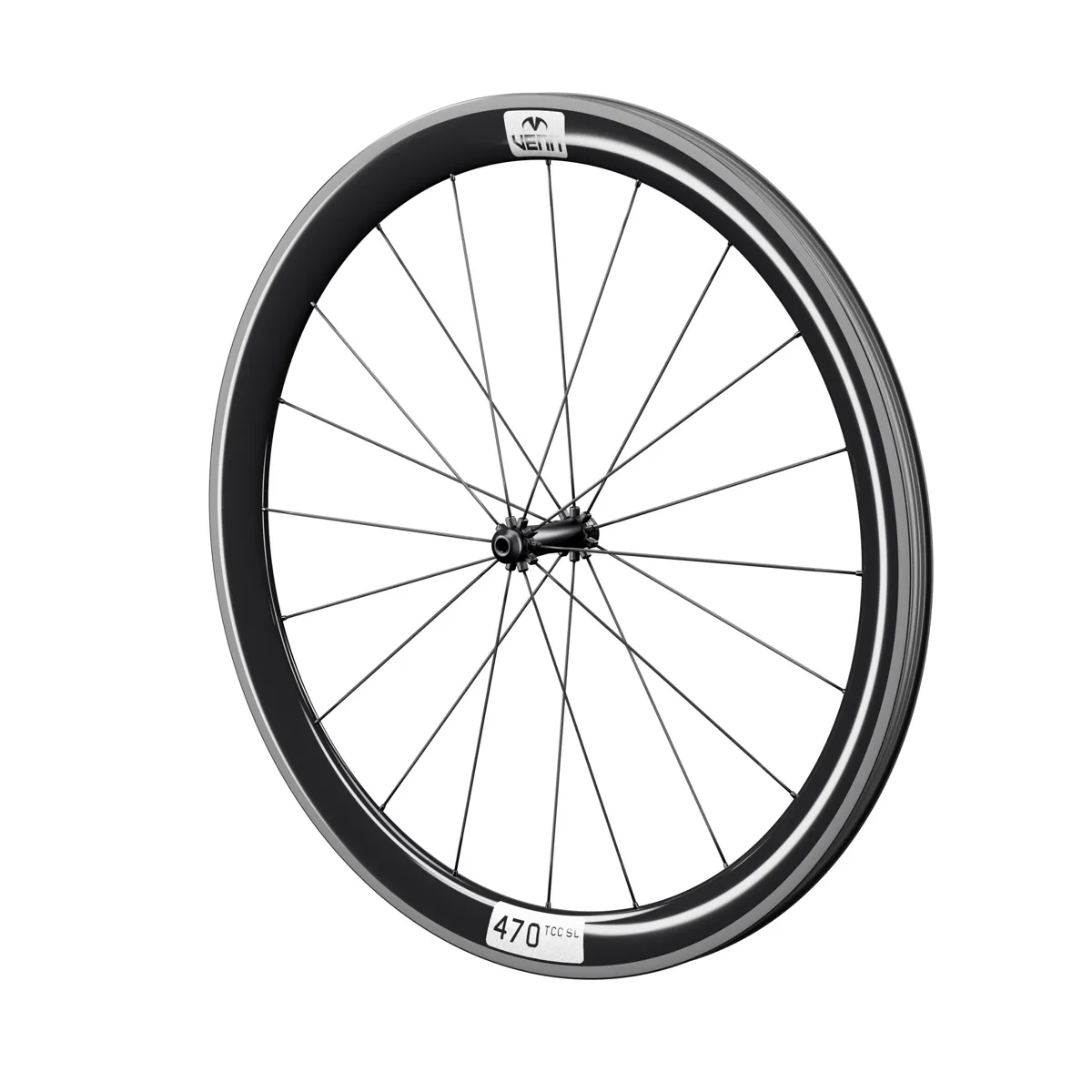

Venn 470 TCC SL carbon wheelset, uncoated gloss finish, rim brake (render; Venn RBH-01 hub illustrative)

Rim Profile

Venn 470 TCC SL rim profile technical drawing

Venn 470 TCC SL Carbon Road Rim Brake Wheelset

1,460 g ±30 · 47 mm deep · 21 mm int. / 28 mm ext. · Pillar 1423 aero steel

Product information

€969

Free shipping · duties & VAT included (US, EU, GB)

Description

The Venn 470 TCC SL is a 47mm carbon wheelset for rim brake road bikes. The all-rounder: fast on the flat and stable in crosswinds. Its 1k filament wound rims carry a 3D brake track for braking you can trust in the wet, and the 21mm internal, 28mm external width suits today's 25mm to 28mm road tires. 20 front and 24 rear Pillar 1423 aero steel spokes are laced to Venn RBH-01 hubs with a 36-tooth ratchet, 5 x 100 / 5 x 130mm quick release and a Shimano HG 11-speed freehub, for a system weight of 1460g. The rims carry no clear coat, in gloss, matte or 25k filament wound, with silver Venn Hanko decals, the original black Venn logo or none. Each wheelset is built to order.

Freehub Options

Compatible with Shimano 11-speed road cassettes · In Stock

Axle Configuration

5x100mm front, 5x130mm rear, quick release · In Stock

Finish

Both without clear coat: the bare 1k carbon surface.

Decals

Secure checkout VISAAmexKlarnaApple PayGoogle Pay
Shipping Built to order: ships 5 to 8 weeks after payment. Shipping is free worldwide. For the US, EU and GB, duties and VAT are included, so the checkout price is the delivered price.
Warranty Rims 5 years, wheelset 2 years, against defects in materials and workmanship.
Carbon Care 40% off the list price of a replacement wheel after a crash, for 5 years. Original owner.
Returns 14 days from delivery for unused items, by mail, from anywhere we ship.
In the box Tubeless tape, brake pads and a spare spoke of each length included.

Carbon Care

A crash should not cost you a whole wheelset. If you damage a Venn wheel in a crash within 5 years of buying it, Carbon Care replaces the damaged wheel at 40% off its list price (the recommended retail price, not the price you paid).

  • Covers accidental crash and impact damage. Manufacturing defects are separate and are always repaired or replaced free under the warranty.
  • 40% off the list price (recommended retail price) of the damaged wheel, front or rear, not off the price you paid. If both are damaged, the discount applies to the full wheelset.
  • Available to the original owner for 5 years from the purchase date.
  • To claim, send proof of purchase and photos of the damage. One claim per incident.
  • Non-transferable.
Duties and VAT included for the EU, UK and US.

Verifiable claims · this wheelset

1,460 g ±30 System weight from component weights Product spec ↗ ±0.1 mm Dimensional tolerance on this rim Manufacturing ↗ 100 J Rim impact pass mark (the UCI asks for 40 J) Testing ↗ 15 QC testing steps before this wheelset ships Testing ↗

01

A 3D BRAKE TRACK

The textured brake track gives the pad more to grip when the road is wet, so the carbon rim brakes with confidence in the rain as well as in the dry. Brake pads for the track are in the box.

02

1K FILAMENT WOUND

Each carbon tape carries exactly 1,000 fibres. The narrow tape puts every fibre where it is needed and gives a smooth, well-compacted laminate with an uncoated Class-A finish: no clear coat to hide anything. 1k filament winding is the fifth generation of the process Venn started in 2015.

03

STEEL SPOKES, VENN RBH-01 HUBS

20 Pillar 1423 aero spokes at the front and 24 at the rear, laced to Venn RBH-01 hubs with a 36-tooth ratchet. Any shop can true or replace a steel spoke, anywhere, and a spare of each length is included. The hubs take 5 x 100 / 5 x 130mm quick release skewers and a Shimano HG 11-speed cassette.

01

Technical specifications

Rim Venn 470 TCC
Rim depth 47 mm
Internal width 21 mm
External width 28 mm
Recommended tire width 25–28 mm
Brake Rim brake, 3D brake track
Spoke count (front / rear) 20 / 24
Spoke type Pillar 1423 aero steel
Hub system Venn RBH-01, 36-tooth ratchet
Axles 5 x 100 / 5 x 130 mm quick release
Freehub Shimano HG 11-speed
Impact rating 100 J
System weight 1,460 g ±30 g
Finish No clear coat; gloss, matte or 25k filament wound (+25 g per rim)
02

In depth

Rim Profile

The 470 TCC SL rim is 47mm deep and weighs about 460g, made with our 1k filament winding process. Its 28mm external and 21mm internal widths suit today's 25mm to 28mm road tires, for clincher or tubeless setups, with tubeless tape included.

Venn 470 TCC SL rim profile

Venn 470 TCC SL rim profile

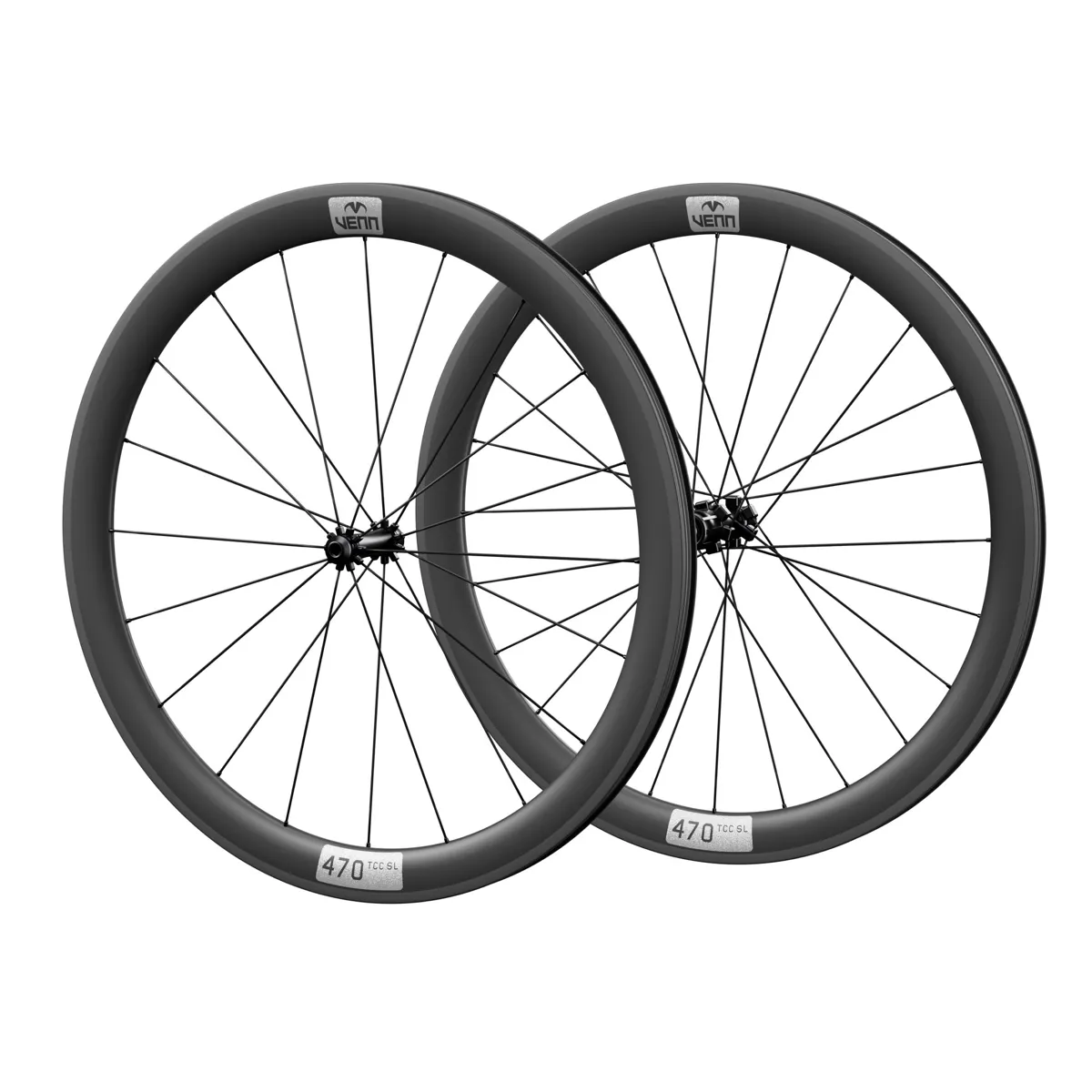

Uncoated Finish, Your Choice

The 470 TCC SL carries no clear coat, whichever surface you choose: gloss, matte, or the 25k filament-wound pattern. Gloss and matte weigh the same; the 25k filament-wound surface adds 25 g per rim. All three cost the same. The decals are your choice too, at the same price: silver Venn Hanko, the original black Venn logo, or none for plain carbon.

About the Images

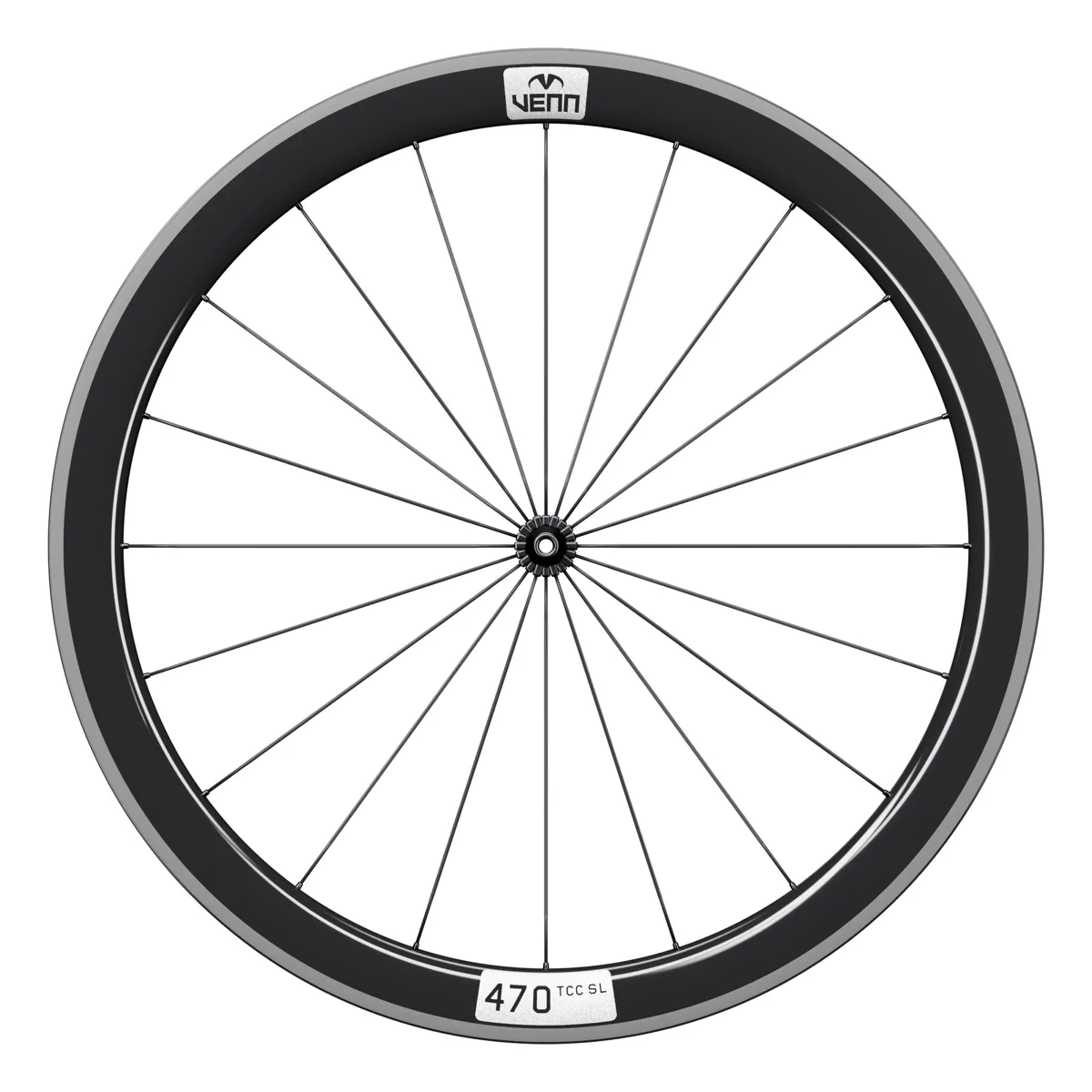

The wheel images are renders. The Venn RBH-01 hub shown is illustrative, and the delivered hub may differ in shape.

Technical Specifications

- Rim Depth: 47mm - Internal Width: 21mm - External Width: 28mm - Brake: Rim brake, 3D brake track - Spoke Count: 20 Front / 24 Rear - Spoke Type: Pillar 1423 aero steel - Hubs: Venn RBH-01, 36-tooth ratchet - Axles: 5 x 100 / 5 x 130mm quick release - Freehub: Shimano HG 11-speed - System Weight: 1460g +/- 30g - Finish: No clear coat; gloss, matte or 25k filament wound (+25 g per rim) - Decals: Silver Venn Hanko, black Venn logo (original) or none

03

Questions riders ask

What kind of rider is the Venn 470 TCC SL for?

Riders on rim brake road bikes who want one fast wheelset for everything: the 47mm profile is fast on the flat and stable in crosswinds.

Will the 470 TCC SL fit my bike?

It fits rim brake road bikes with 100mm front and 130mm rear quick release dropouts, and its freehub takes Shimano HG 11-speed cassettes. It is not for disc brake or thru axle frames: for those, choose one of our disc wheelsets.

How much does the Venn 470 TCC SL weigh?

1460g +/- 30g for the pair, from its component weights: two 470 TCC SL rims of about 460g each, the Venn RBH-01 hubs and 44 Pillar 1423 spokes.

What is the 3D brake track?

A textured braking surface on the rim. It gives the pad more to grip when the road is wet, so braking stays predictable in the rain. Use the brake pads supplied in the box.

Which decals can I choose?

Silver Venn Hanko, the original black Venn logo, or none for plain carbon. All three cost the same; choose before you add the wheelset to your cart.

Are the 470 TCC SL wheels tubeless-ready?

Yes. They take clincher or tubeless tires and ship with tubeless tape; with sealant, most punctures seal before you notice them. The 21mm internal width suits 25mm to 28mm road tires.

How long does delivery take?

Each 470 TCC SL is built to order with your choice of finish and decals. It ships 5 to 8 weeks after payment, and you receive a tracking number at dispatch. Shipping is free worldwide.
